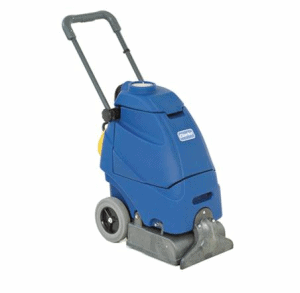

Carpet Cleaner- Clarke Clean Track 12

$35.00$310.00

SKU: N/A Category: Tag:

[tabgroup]
[tab title=”Product”]Clarke Carpet Cleaner
This machine is a portable, easy to use carpet extractor designed for use indoors, in a household or light industrial environment.When operating as a carpet extractor, cleaning solution is dispensed onto the carpet and agitated by a rotating brush. The solution is then extracted from the carpet by a vacuum. The head on the brush is floating, allowing it to automatically adjust to various carpet depths while applying an effective brush pressure.
Features
Unique no-hose design. Recovery tank lifts off machine for easy emptying and rinsing
Floating brush with automatic height adjustment ensures consistent results
Handle is fully adjustable for operator comfort
Handle folds over machine for compact storage and easy transport[/tab]
[tab title=”Specs”]Clarke Carpet Cleaner

Vacuum Motor: 1.5 hp (1130 watts). 100 cfm (2.8 m3/min.) airflow

Vacuum Shoe: 31 cm

Brush: 10 inches (25 cm)

Brush Motor: 1/8 hp (93 watts)

Solution Tank: 4 gallons (15 liters)

Recovery Tank: 4 gallons (15 liters)

Construction: Rotationally molded polyethylene tanks and frame

Approvals: UL Listed, C-UL Listed

Warranty: Three Year Protection Plan

Dimensions:
Width: 13.5 inches (34 cm)
Height: 38.5 inches(98 cm)
Length: 24 inches (61 cm)[/tab]
[tab title=”Operating”]Clarke Carpet Cleaner

Vacuum Motor: 1.5 hp (1130 watts). 100 cfm (2.8 m3/min.) airflow

Vacuum Shoe: 31 cm

Brush: 10 inches (25 cm)

Brush Motor: 1/8 hp (93 watts)

Solution Tank: 4 gallons (15 liters)

Recovery Tank: 4 gallons (15 liters)

Construction: Rotationally molded polyethylene tanks and frame

Approvals: UL Listed, C-UL Listed

Warranty: Three Year Protection Plan

Dimensions:
Width: 13.5 inches (34 cm)
Height: 38.5 inches(98 cm)
Length: 24 inches (61 cm)[/tab]
[tab title=”Operating”]Windsor Expert Carpet Extractor

FILLING THE SOLUTION TANK:
Remove clear dome from recovery tank.
Lift upper recovery tank from machine and set aside.
Use a clean bucket or hose to fill solution tank with hot water. The solution tank holds 4 gallons (15.2 liters) of cleaning solution.
Do not use the recovery tank to fill the solution tank. Sediment in the recovery tank can damage the solution pump and clog the spray jets, rendering the machine inoperable.

Add a non-foaming concentrate for use in hot water extractors at the proportions noted on the container.
To avoid possible distorion of the popyethylene solution/ recovery tanks, DO NOT USE WATER WITH A TEMPERATURE THAT EXCEEDS 140° F.

Place recovery tank back on machine.
Place dome on recovery tank. Make sure dome is seated correctly to ensure proper vacuum seal.

OPERATING THE MACHINE:
Vacuum the carpet and make sure it is cleared of surface debris before cleaning.
Plug power cord into a grounded wall outlet.
Turn on the pump, brush and vacuum switches, listening for each motor to turn on.
NOTE: The vacuum and the brush are protected by circuit breakers locatd on th back panel, below their respective switch.

NOTE: If either of these motors does not respond to being switched on, reset the circuit breakers by pressing them in, and attempt to switch the machine on again.

NOTE: If soltuion does not dispense in an even pattern across the width of the machine, the spray jet may be clogged. Tilt the machine back and remove the spray tip by pushing in and turning it one quarter turn. Wash it thoroughly, and blow dry.

NOTE: Do not use pins, wire etc. to clean spray jet nozzle as this will deform the jet and destroy the spray pattern.

Begin with the machine at the edge of the carpet. Actuate the solution lever while pulling the machine backwards. Release solution lever at least 12 inches before the end of each cleaning pass. This will ensure all dispensed cleaning solution is extracted from the carpet.
While operating machine, check for excessive foam buildup in the recovery tank. If excessive foam is present, add a defoamer solution to recovery tank, or empty tank.

Empty recovery tank when approximately 3/4 full. If the recovery tank is overfilled, the water will drain back onto the carpet when the vacuum is switched off.
Ventilate area after carpet has been cleaned. Keep children and pets away and do not walk on carpet until it is dry. A surface dryer can be used to reduce drying time

OPERATING MACHINE WITH ACCESSORY TOOLS
Lift flap on the front of the vac shoe and insert hose cuff into the vac shoe, ensuring that there is a tight fit.
Attach the solution hose from accessory tool to the brass solution fitting on the front of machine.
Switch on the pump and the vacuum. The application of cleaning solution is now controlled by the lever on the accessory tool.
Do not switch on brush when operating the machine with accessory tools. Carpet damage may occur.

NOTE: The solution pump is not intended to run dry. When using the extractor for vacuum pick-up only, insure that the pump switch is turned off.[/tab]
[tab title=”Safety”]Clarke Carpet Extractor
DO NOT leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or service.
USE ONLY indoors. Do not use outdoors or expose to rain.
DO NOT allow machine to be used as a toy. CLOSE ATTENTION is necessary when used by or near children.
USE ONLY as described in this manual. Use only manufacturer’s recommended components and attachments.
DO NOT use damaged electrical cord or plug. If the machine is NOT WORKING PROPERLY, has been dropped, damaged, left outdoors, or dropped into water, return it to rental center.
DO NOT pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp edges or corners.
DO NOT run machine over cord. KEEP cord away from heated surfaces.
DO NOT unplug machine by pulling on cord. To unplug grasp the electrical plug, not the electrical cord
DO NOT handle the electrical plug or machine with wet hands.
DO NOT operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
THIS MACHINE IS intended for cleaning carpet only.
DO NOT vacuum anything that is burning or smoking, such as cigarettes, matches,or hot ashes.
THIS MACHINE IS NOT suitable for picking up health endangering dust.
TURN OFF ALL controls before unplugging.
MACHINE CAN CAUSE A FIRE when operating near flammable vapors or materials. DO NOT operate this machine near flammable fluids, dust or vapors.
IF FOAM OR LIQUID comes out of machine, switch off immediately.[/tab]
[/tabgroup]
